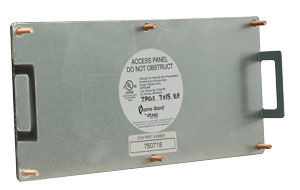

10" X 15" Flame Gard Grease Duct Access Panel(750712)

Flame Gard UL fire rated flat access doors. Heavy-duty 16 gauge steel construction. Back frame reinforces duct cut-out. Gasket rated to 2300F (1260C) for fire tight seal. Easy to install and easy to clean.

Back Frame Outside Dim: 10" x 15" (254mm x 381mm)
Front Panel Outside Dim: 10" x 15" (254mm x 381mm)
Panel Width: 1/2" (13mm)
Stud Height: 1" (25mm)
Hole Size: 7" x 12" (178mm x 305mm)
Mounting Studs: 6
Flame Gard Model Number: 750712

Click here to download the data sheet for this product.
