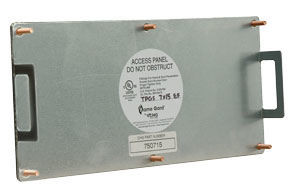

7" X 23" Flame Gard Grease Duct Access Panel

Flame Gard UL fire rated flat access doors. Heavy-duty 16 gauge steel construction. Back frame reinforces duct cut-out. Gasket rated to 2300C for fire tight seal. Easy to install and easy to clean.

Back Frame Outside Dim: 7" x 23" (178mm x 584mm)
Front Panel Outside Dim: 7" x 23" (178mm x 584mm)
Panel Width: Flat
Stud Height: 1" (25mm)
Hole Size: 5-1/2" x 21-1/2" (140mm x 546mm)
Mounting Studs: 10
Flame Gard Model Number:705723

Click here to download the data sheet for this product.
